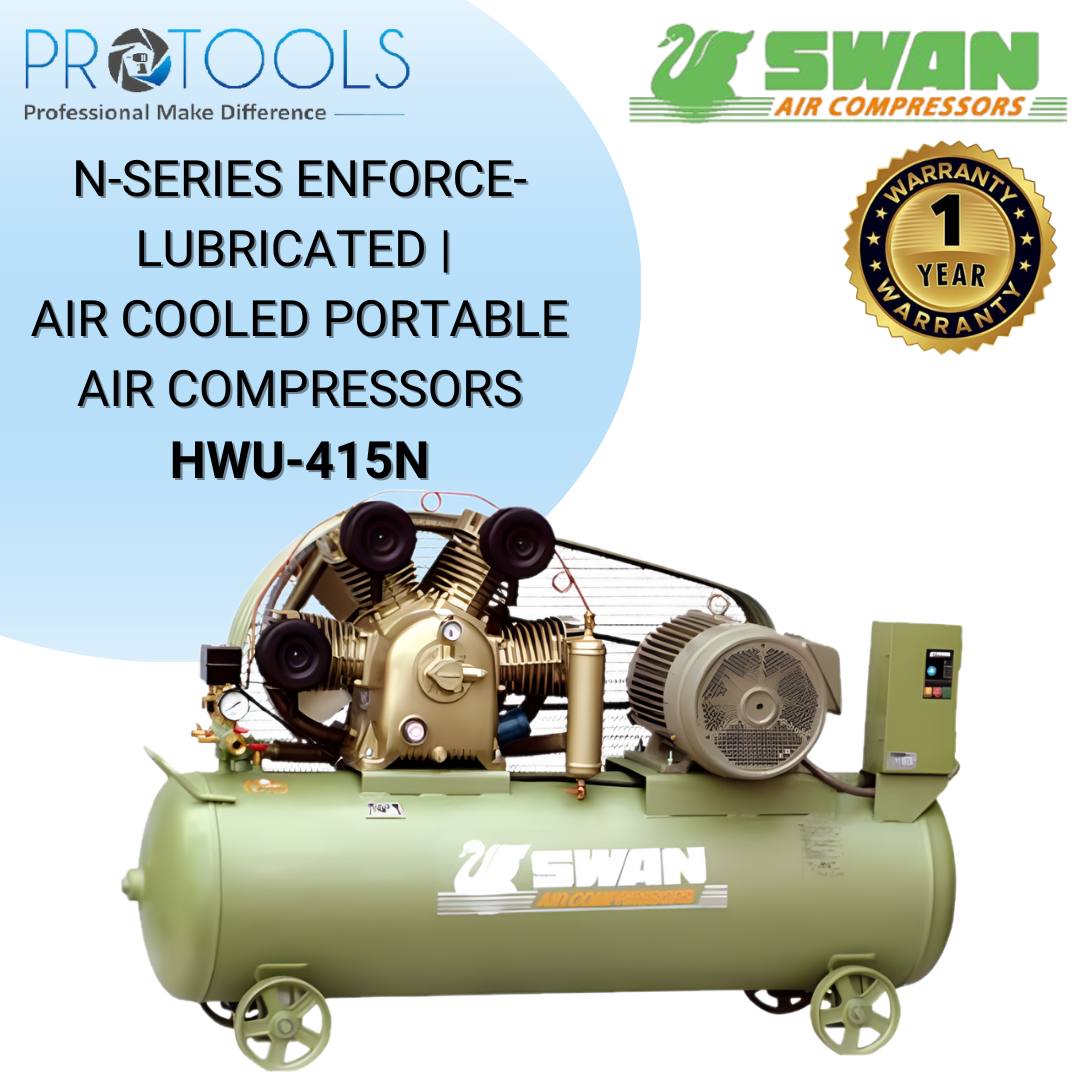

HWU-415N N-SERIES ENFORCE- LUBRICATED |  AIR COOLED PORTABLE AIR COMPRESSORS | *PRICE ON REQUEST*


FEATURES

• Big Crankcase oil sump.
• Special oil-filled crankshaft.
• Built-in enforced lubrication system provides highly reliabe solutions.
• Oil pressure protection mechanism.
• Effective air circulative cooling system.
• Unloading design.
• Design for heavy duty industries.

CONTROL SYSTEM
Automatic Unloader System “U” Type

• The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of preset pressure valves.
• This system is recommended where the duty cycle exceeds 50% and for all larger compressures unit.

SPECIFICATION
Motor: 11Kw / 15hp
Working Pressure (kg/cm²/lb/in²): 12
Compressor Speed (rpm): 850
F.A.D l/min: 1120L/min
Tank Capacity (L): 300
Compressor Block Physical Dimension (LxWxH cm): 70x52x55 | 118kg
Compressor Unit Physical Dimension (LxWxH cm):183.5x65x120 | 350g
