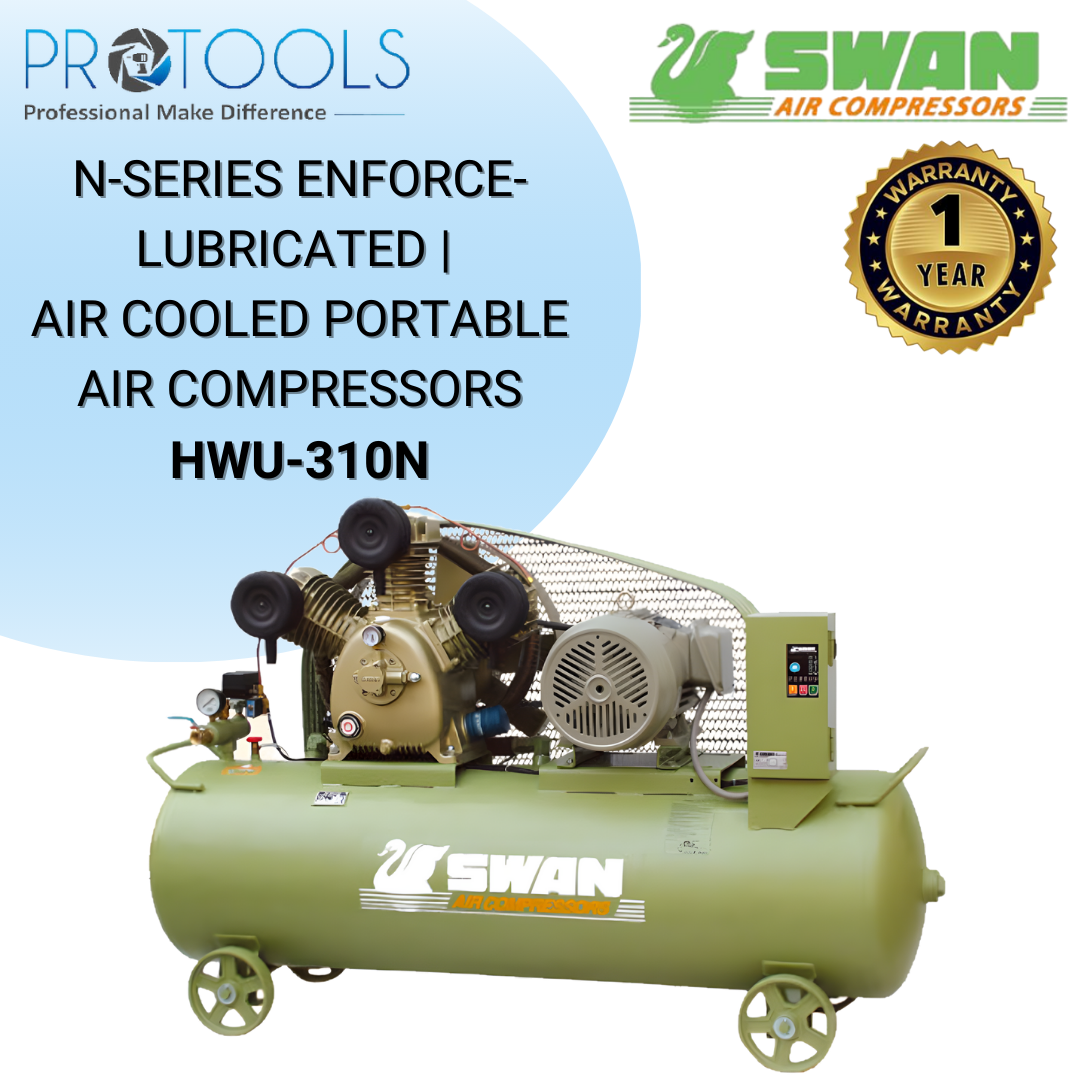

HWU-310N N-SERIES ENFORCE- LUBRICATED | AIR COOLED PORTABLE AIR COMPRESSORS | *PRICE ON REQUEST*
HWU-310N N-SERIES ENFORCE- LUBRICATED | AIR COOLED PORTABLE AIR COMPRESSORS | *PRICE ON REQUEST*
FEATURES
- Big Crankcase oil sump.
- Special oil-filled crankshaft.
- Built-in enforced lubrication system provides highly reliabe solutions.
- Oil pressure protection mechanism.
- Effective air circulative cooling system.
- Unloading design.
- Design for heavy duty industries.
CONTROL SYSTEM
- Automatic Unloader System “U” Type
- The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of preset pressure valves.
- This system is recommended where the duty cycle exceeds 50% and for all larger compressures unit.
SPECIFICATION
Motor: 7.5Kw / 10hp
Working Pressure (kg/cm²/lb/in²): 12
Compressor Speed (rpm): 850
F.A.D l/min: 786L/min
Tank Capacity (L): 237
Compressor Block Physical Dimension (LxWxH cm): 70x46x56 | 95kg
Compressor Unit Physical Dimension (LxWxH cm):147x65x115 | 262g
