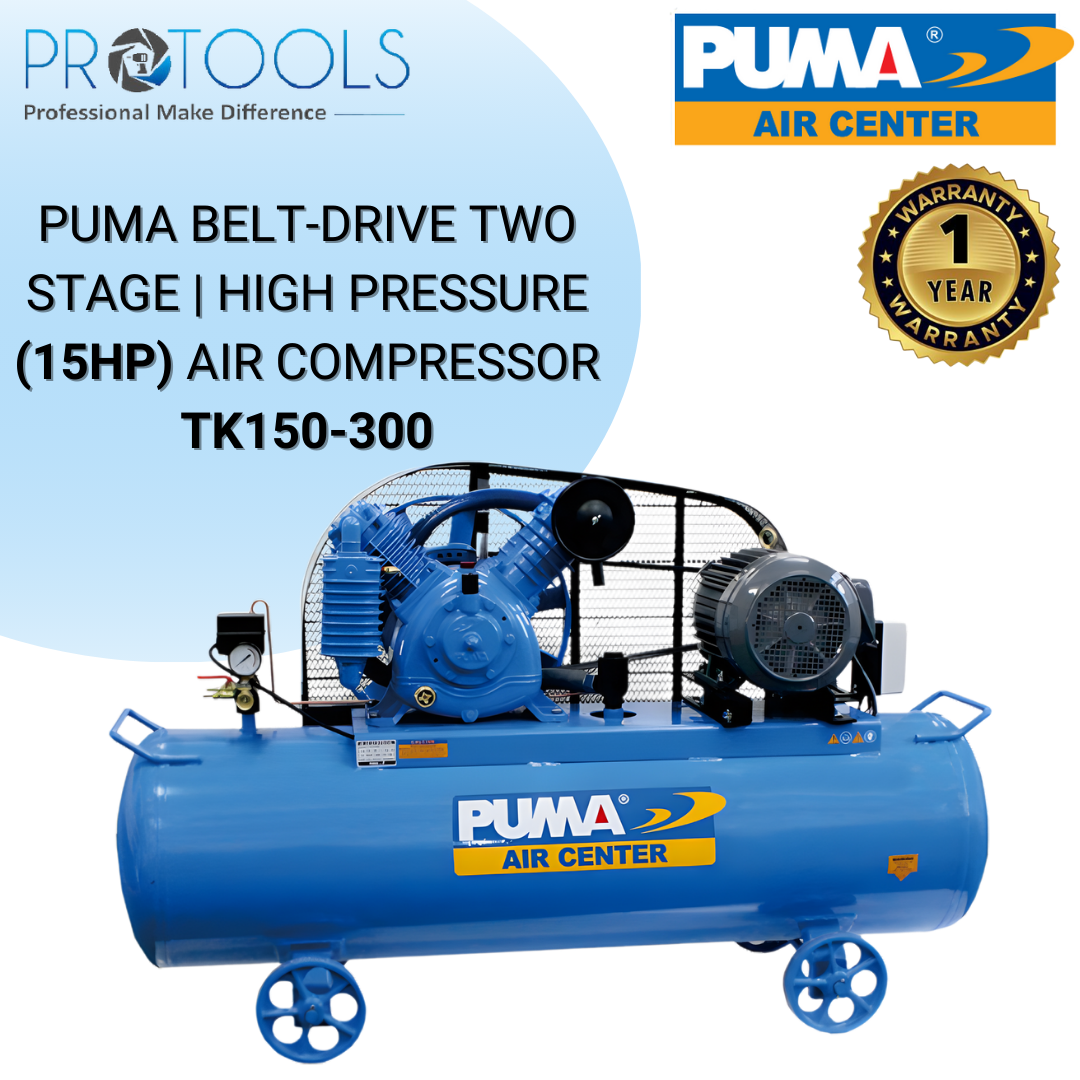

PUMA BELT-DRIVE TWO STAGE | HIGH PRESSURE (15HP) AIR COMPRESSOR TK150-300 | *PRICE ON REQUEST*



• Special high-pressure design, safety, and sturdy structure for durability.

• The availability of the special auxiliary cylinder can further enhance compression efficiency.

• Suitable for use in factories, auto maintenance plants, tire shops, and special high-pressure supply systems.

SPECIFICATIONS
HORSE POWER (HP): 15 HP
POWER (KW): 11.2 KW
DISPLACEMENT (L/MIN/CFM): 560 L/MIN / 55.1 CFM
SPEED (R.P.M): 690 RPM
NO. OF CYLINDER: 3
MAX PRESSURE (KG/CM²/PSI): 16 KG/CM² / 228 PSI
WORKING PRESSURE (KG/CM²/PSI): 12 KG/CM² / 171 PSI
TANK CAPACITY (L/GAL): 304 L / 80 GAL
N.W (KG/LBS.): 530 KG / 1166 LBS
DIMENSION (CM): 191 x 76 x 142
