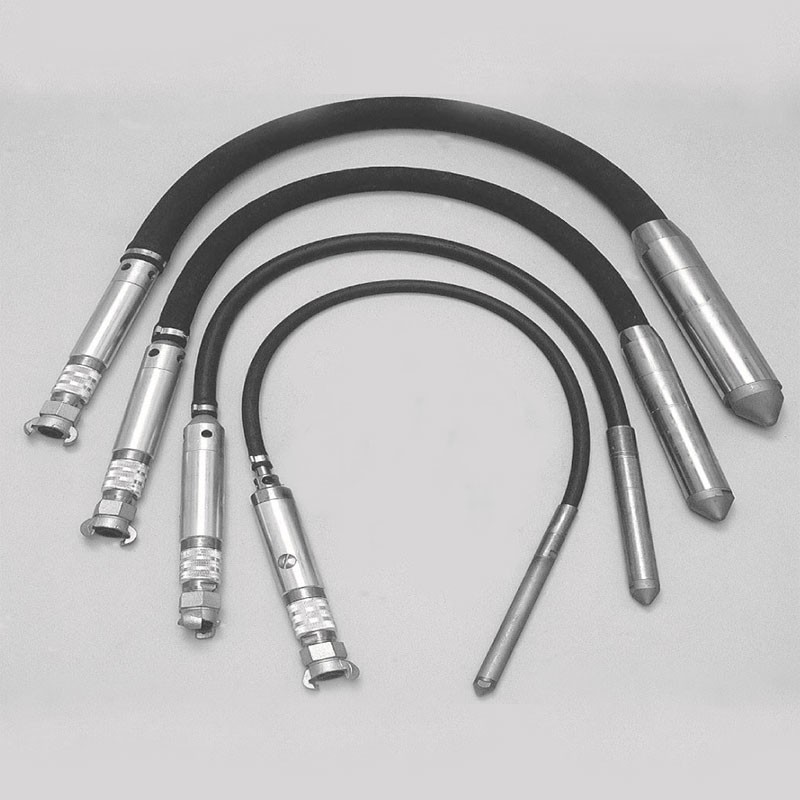

Vibtec Air Vibrator
The VIBTEC V600 range of pneumatic concrete pokers is of high performance immersion vibrator of simple precision construction. Engineered with minimum moving parts and no bearings, these vibrators supplements our existing range and include the following features:
- - High efficiency
- - Range of 5 sizes
- - Standard in-line lubricator
- - Maintenance free rotor
- - Simple value operation
- - Highly competitive cost
| MODEL | V635 | V645 | V655 | V665 | V675 |
|---|---|---|---|---|---|
| Vibration Head (Dia x Length) | 35mm x 4m | 45mm x 4m | 55mm x 4m | 65mm x 4m | 75mm x 4m |
| Vibration Frequency (vpm) | 18000 | 17000 | 17000 | 18000 | 18000 |
| Centrifugal Force (n) | 1924 | 3500 | 6050 | 9301 | 14851 |
| Free Air (1/min) | 608 | 736 | 820 | 1018 | 1218 |
| Total Weight (kgs) | 6 | 8 | 9 | 10 | 15 |
| Rad. of Effectiveness (cm) | 20 | 25 | 38 | 44 | 50 |
